Semi Automatic Sink Seam Welding Machine HWASHI 160KVA DC Table Type

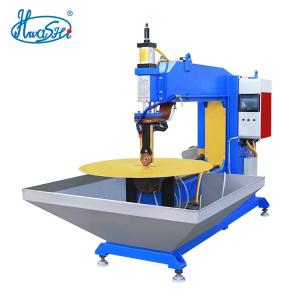

HWASHI 160KVA DC Table Type Sink Seam Welding Machine

DESCRIPTION

HWASHI 160KVA DC Sink Seam Welding Machine is the evolution of spot welder. It uses the roller electrode to replace the cylindrical electrode of spot welding and as the welding work piece moves between the rolling plates, the seal welding will generate weld nuggets which will overlap with each other so as to achieve welding effect. Generally, AC pulse current or amplitude modulation current will be adopted, but three -phase medium frequency DC power is also available. Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile.

HWASHI 160KVA DC Sink Seam Welding Machine is suitable for product within 1200x600mm. Welding thickness is ranging from 0.8-1.2mm.

FEATURE

1) Power Source 1: It can adopt 160KVA resistance welding special transformer energy as welding power supply. Output current is above 40000A when the duty cycle rate is 50%. Executed standard is GB/15578-2008, magnetic permeability of forced temperature control water cooling silicon steel sheet is above 1200GS, special water cooling and subprime loop, ensuring constant and powerful welding current, providing guarantee for high quality welding spot.

2) Welding Wheel Driving System: design to use three-phase motor with transimission device to drive the upper and lower wheel. The upper and lower welding wheel pressing device friction will drive the welding work piece to rotate. The rotating speed can be stepless adjusted via frequency converter.

3)Rotating Feeder: Adopt high-power electric motor as the driving force. The rotating speed is controlled by the speed cut press box and frequency transducer. Powerful capacity, easy and convenient adjustment.

4)¬ Welding Start: Adopt pedal start mode. Convenient operation.

SPECIFICATION

APPLICATION

Roll welding is widely applied to light gauge welding of sealed container of oil drum, can, heating radiator, airplane and fuel tank, rocket and missile. In general, the welding thickness is within 3mm of single plate.

ABOUT US

Guangdong Hwashi Technology Inc. was established in 2001 whose registered capital is RMB 10.309 million.

Hwashi has two production bases in Huizhou, Guangdong Province and Gaoan, Jiangxi Province, covering

a total area of 50,000 square meters. Several branches were set up in Hong Kong, Shenzhen, Shanghai,

Wenzhou, etc. Hwashi is the leading company in welding industry in China and has been awarded the famous

brand for years. Hwashi welding machines are selling to more than 70 countries like areas in Russia, India,

Turkey, Chile, U.S. Saudi Arabia, Italy, Hungary, South Korea, Japan, etc. for providing the best welding machine

and automation solution to the top companies all over the world.

Hwashi company is a high-tech enterprise which is specialized in developing, manufacturing and selling

of standard resistance welding machine, customized automatic welding machine, and industrial robot, etc.

A professional and rich experienced technical team gathered in Hwashi. They insist in self-developing

and take the overseas advanced technology as reference and has obtained more than 70 national patents.

Except for the standard resistance welding machine, they also devote in developing all kinds of automatic

welding machine and production line. Lots of automatic welding production lines has been designed and

manufactured for famous companies in domestic and abroad successfully. Hwashi equipment has

been widely applied to manufacturing industries like cookware, automobile, motorcycle, hardware,

household appliances, low-voltage apparatus, elevator, compressor, etc. In terms of quality, Hwashi has

obtained ISO9001:2000 certificate of quality system, CCC and CE certificate. The main customers

include MIDEA Group, SUPOR Group, GREE Group, Shanghai Panasonic, DELIXI, BYD, MEYER Thailand,

BRG India, etc.

"Caring for our customers and providing earnest service" is the aim of Hwashi company. To meet what you

need is the goal Hwashi pursue. They are committed to become the top class welding solution expert in the

world and break through all kinds of welding difficulties to create real value for customers.

                                  Professional Team

Over the years, Hwashi has cultivated a large number of talented, dedicated and innovative Hwashi people.

We have a professional team of experts with rich experience in electrical engineering, mechanical design and

welding technology.

FAQ:

Q1: what is the price of your machine?
Answer: our machines are customized for your requirements. If you want to get the appropriate

price, please provide us the following information.
* The material and thickness of your product
* The minimum and maximum size of your product
* The welding position of your products
* The automation level that you want to achieve
* It would be better if you can provide us the detailed product drawings so our engineer can come out with

the suitable technical proposal and price for you.

Q2: what is the warranty period of your machine?
Answer: our standard warranty period is one year after shipment. If you want to extend the warranty period,

there will be extra cost.

Q3: what if my machine damaged doing the warranty period?
Answer: firstly, our engineer will help you to diagnose the problem via online guidance. if any parts damaged

during the warranty period, we will send the parts to you for replacement free of charge. If you can not fix he

problem by replacement of the new parts, we will send engineer to your factory to help fixing the machine.

Q4: what is the delivery time of your machine?
Answer: it depends on the complexity of your machine. Most of our standard machine we got in stock, then

we can shape the machine with the seven days after receiving your payment. If you need the Customized

machine, normally it would take about 30-90 days to complete the machine.

Q5: can we send the sample to you for welding test?
Answer: yes. You can send us the samples for welding test and we will send you the pictures and videos

after the testing. If you need, we can also send the samples back to your country so you can check

the welding quality by yourself before ordering the machine.

Q6: can you provide us the machine drawings and technical proposal?
Answer: yes. After receiving your detailed requirement and product drawings, our engineer will come out

with the suitable technical proposal with the basic machine concept drawings to you. Be size after you

placing the order we will send you the more detailed design drawings of the machine to you for confirmation.

Only after you confirming the drawings then we will start the manufacturing process.

Q7: what’s your payment terms?
Answer: we can accept the following payment terms: T/T, L/C, Western Union, Alibaba trade assurance.

(we prefer you to choose the Alibaba trade assurance order. If you are not satisfied with the machine that

you order, or we delay the shipping time, then you can apply the complaint on alibaba.com. )

Q8: how can we install the machine?
Answer: for some simple machines we will provide you the english operation manual, the operation video

and also we will provide you the online guidance and training to your engineer so you can set up the

machine easily. For some complicated machines, we will send engineer to your country to help installation

and training. But there will be extra cost for Engineer, including the salary, visa cost, round-trip ticket

cost, and accommodation fee will be covered by the buyer.
