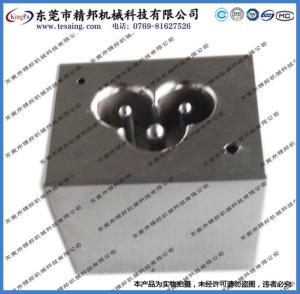

IEC 60320-1-1 C5 Connector 2.5A 250V With Hardened Steel Pins

IEC 60320-1-1 C5 connector -maximum withdrawal forces of gauge

Appliance couplers

Standards sheet C5, Connector 2.5 A / 250 V for class II equipment for cold conditions (non-rewirable only)

Standards:

GB17465.1, IEC 60320-1,EN 60320-1,UL60320-1,CSA C5.2 NO. 60320-1,AS/NZS 60320.1, DIN EN 60320-1, SANS 60320-1,PN EN 60320-1, UNE EN 60320-1, SN EN 60320-1, NBN EN 60320-1, I.S. EN 60320-1, NF EN 60320-1, NEN EN IEC 60320-1-1 CEI EN 60320-1, SN EN 60320-1, SS EN 60320-1, BS EN 60320-1, KS C IEC 60320-1-1, OVE/ONORM EN 60320-1, DS/EN 60320-1, JIS C 8283-1, CNS 6797, MEK 60320-1

Requirements:

IEC60320-1 Sec. 16.2 Verification of the maximum withdrawal force (2015)

For Standardsized types:

The appliance inlet/plug connector has finely ground pins of hardened steel, having a surface roughness not exceeding 0,8 µm over their active length and spaced at the nominal distance with a tolerance of + 0,02/- 0 mm.

The pin dimensions have the maximum values, with a tolerance of + 0/- 0,01 mm, except that the pin length need only comply with the tolerance of the Standards sheet, and the inner dimensions of the shroud have the minimum values, with a tolerance of + 0,1/-0 mm, specified in the relevant Standards sheet.

NOTE 2 The maximum value is the nominal plus the maximum tolerance. The minimum value is the nominal minus the maximum tolerance.

For non-Standardsized types: The counterpart as specified by the manufacturer shall be used
