| Categories | Turnkey PCB Assembly |
|---|---|
| Brand Name: | HUASWIN |
| Model Number: | HSPCBA1021 |
| Certification: | ISO/UL/RoHS |
| Place of Origin: | China |
| MOQ: | 1 sets |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 10,000pcs per month |
| Delivery Time: | 15-20 working days |
| Company Info. |
| Huaswin Electronics Co.,Limited |
| View Contact Details |
| Product List |

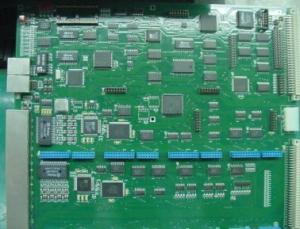

OEM Quick Turn Printed Circuit Boards Assembly with AOI Inspection
Huaswin specialized in PCB manufacturing and and PCB Assembly
Detailed Specification of Pcb Assembly
1 | Type of Assembly | SMT and Thru-hole |
2 | Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
3 | Components | Passives Down to 0201 Size |
BGA and VFBGA | ||
Leadless Chip Carries/CSP | ||
Double-Sided SMT Assembly | ||
Fine Pitch to 08 Mils | ||
BGA Repair and Reball | ||
Part Removal and Replacement-Same Day Service | ||
3 | Bare Board Size | Smallest:0.25x0.25 Inches |
Largest:20x20 Inches | ||
4 | File Formats | Bill of Materials |
Gerber Files | ||
Pick-N-Place File(XYRS) | ||
5 | Type of Service | Turn-Key,Partial Turn-Key or Consignment |
6 | Component Packaging | Cut Tape |
Tube | ||
Reels | ||
Loose Parts | ||
7 | Turn Time | 15 to 20 days |
8 | Testing | AOI inspection |
X-Ray inspection | ||
In-Circuit testing | ||
Functional test |
Advantages:
Turnkey manufacturing or quick-turn prototypes
Board-level assembly or complete system integration
Low-volume or mixed-technology assembly for PCBA
Even consignment production
Supoorted capabilities
Quality Assurance:
ISO9001 and ISO/TS16949 management systems
Lean production system
ERP and PTS system support for management
Quality Processes:
1. IQC: Incoming Quality Control (Incoming Materials Inspection)
2. First Article Inspection (FAI) for every process
3. IPQC: In Process Quality Control
4. QC: 100% Test & Inspection
5. QA: Quality Assurance based on QC inspection again
6. Workmanship: IPC-A-610, ESD
7. Quality Management based on CQC, ISO9001:2008, ISO/TS16949
Testing:
AOI (Automatic optical inspection)
ICT(In-circuit test)
Reliability test
X-Ray Test
Analogue and digital function test
Firmware programming
Rich experience for SUPPLY CHAIN MANAGEMENT for components,
moldings, stamping, plastic injection parts etc.
Contat us for your RFQ!
|
